Appearance and Properties:Colorless, transparent liquid
Application Of Pfpe Oil
PFPE (perfluopolyether)vacuum pump oils are used in diffusion pump , recommended for pumping extremely reactive gases. PFPE oils must be used if the process gas could react with hydrocarbon vacuum oil to create a fire or explosion hazard. Because of their high molecular weight and their relative chemical inertness.
Packing

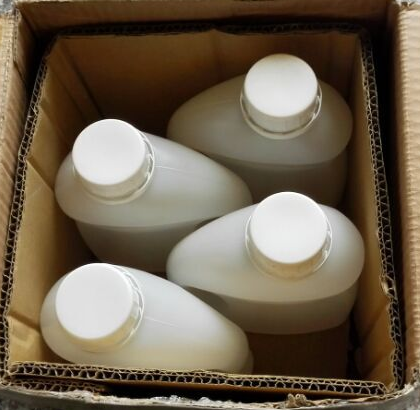

1kg or 5kg plastic drum
SPECIFICATION
| Specification | Unit | 60E6 | 140E6 | 160E6 | 250E6 | |
| Fomblin Equivalent | 06/6 | 14/6 | 16/6 | 25/6 | ||
| Average Molecular Weight | a.m.u | 1800 | 2500 | 2700 | 3300 | |
| Density（20℃,68℉） | g∕cm3 | 1.88 | 1.89 | 1.89 | 1.90 | |
| Viscosity | cSt | 64 | 148 | 168 | 276 | |
| Vapour Pressure | @25℃ |
torr
|
8×10-7 | 1×10-7 | 2×10-6 | 6×10-8 |
| @100℃ | 3×10-3 | 2×10-4 | 2×10-4 | 6×10-5 | ||
| Pour Point | ℃ | -50 | -45 | -45 | -35 | |
| Vaporization Heat（200℃） | cal/g | 11 | 8 | 8 | 7 | |
| Surface Tension ⊙22hrs,
149℃(140E6,160E6,250E6) |
dyne/cm | 21 | 22 | 22 | 22 | |
| %by wt.⊙22hrs,
120℃(60E6) |
2.8 | 2.6 | 3.9 | 0.6 | ||
| Total Pressure | torr | 1.7×10-3 | 1.4×10-3 | 2.4×10-3 | 1.2×10-3 | |
| Fuel Consumption | cm3/hr | 0.4 | 0.6 | 0.5 | 0.7 | |
