Heat Transfer Fluid

PHOENIX-T series perfluoropolyether heat transfer oil takes advantage of the high boiling point and low   pour point of perfluoropolyether, which can control the continuous temperature of the equipment at a certain setting level under relatively harsh working conditions (extremely high and extremely   low temperature conditions).

PHOENIX-T series perfluoropolyther heat transfer oil has chemical resistance, low thermal resistance,

non-toxicity, excellent dielectric properties, no flash point, no ignition point, low viscosity, does

not damage ozone, in line with RoHS, REACH, PFAS related regulations, belong to green products.

Chemical components Perfluoro Polyether

Application areas

This series of products can be used for specific production conditions such as component impregnation, wafer etching, ion implantation, and temperature management of radar,

transformer, power supply, chiller, cooling tower, freeze-drying machine and other equipment.

Packaging, transportation and storage

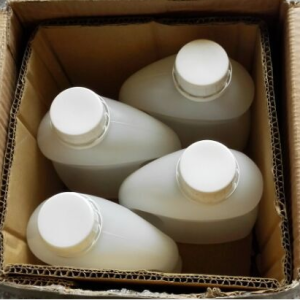

The company supplies in the form of 1kg and 5kg plastic drums.

This product is packed in a plastic bucket. Handle it with care and keep it upright to prevent damage or oil leakage.

This product has no pressure, no commercial corrosion, non-toxic, harmless and pollution-free, and its packaging meets the requirements of sea and air transportation.









PHOENIX-T series product performance parameter table

Model	110	135	170	200	230	270
Boiling point	110	135	170	200	230	270
Pour Point	-100	-100	-97	-85	-77	-66
密度/g*cm³ Density	1.69	1.73	1.78	1.79	1.81	1.84
运动粘度/cSt(@25℃) Kinematic viscosity	0.8	1.1	1.7	2.9	4.7	12
比热容/cal*g-1*℃-1   Specific heat capacity	0.23	0.23	0.23	0.23	0.23	0.23
导热系数/W*m-1*K-1  Thermal conductivity	0.065	0.065	0.065	0.065	0.065	0.065
击穿电压/kV(2.54mm) Penetration voltage	>40	>40	>40	>40	>40	>40
Dielectric constant	<1	<2	<2	<2	<2	<2
体积电阻率/Ohm*cm  Volumetric resistivity	>1.0*1013	>1.0*1013	>1.0*1015	>1.0*1015	>1.0*1015	>1.0*1015
介电损耗(1Khz)  Dielectric losses	2*10-4	2*10-4	2*10-4	2*10-4	2*10-4	2*10-4
水分/ppm(wt)  Moisture/ppm	<10	<10	<10	<10	<10	<10
